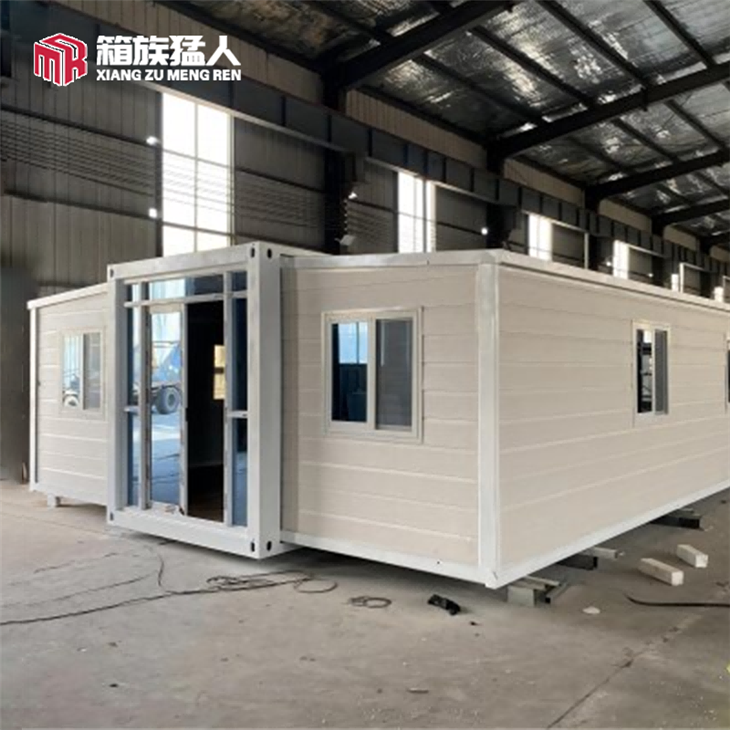

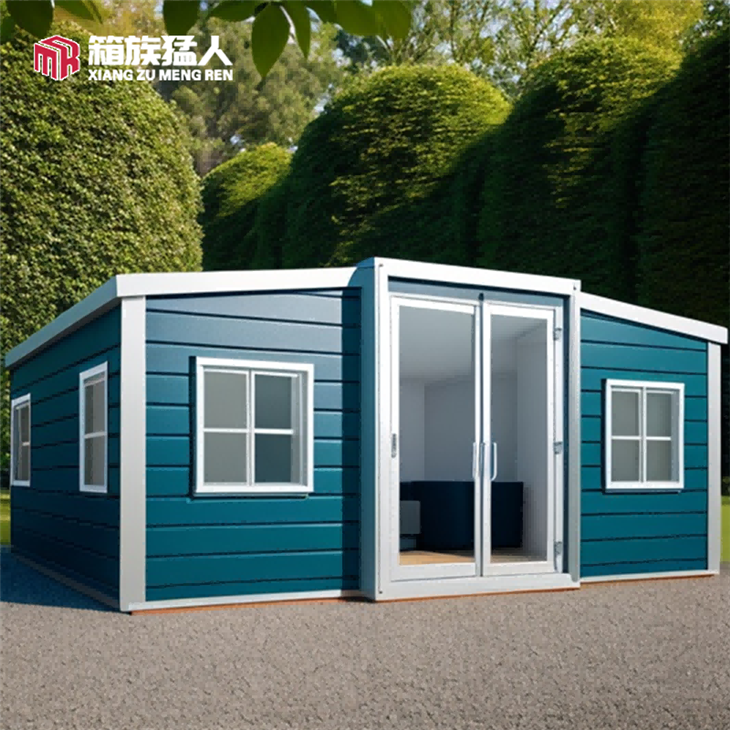

Custom Waterproof Expandable Container House
$5500.00 | 1 set(Min.Order)
Weight:2800kg
Floor load:250kg/sqm
Roof load:100 kg/sqm
Description
| Size | Fold size5850(L)*2250(W)*2500mm(H) Unfold size5850(L)*6400(W)*2500mm(H) |
| Loading | 1x40HQ can load 1-2 units |
| Weight | 2800kg |
| Floor load | 250kg/sqm |
| Roof load | 100 kg/sqm |
| Thermal insulation properties | Input=0.048W/m·K Fire performance |
| Sound insulation performance | Sound insulation ≥30dB |
| Wind resistance | 0.60kN/m² |
| Fire performance | Level A |
| Waterproof performance | Organized drainage, precipitation 16mm/min, no leakage |
Prefabricated modular structures are mainly divided into two parts: prefabrication and assembly:
The first stage: factory prefabrication production, the production, assembly and connection of prefabricated components are completed in the factory;
The second stage: the building modules are transported to the construction site by transport vehicles, and then the building modules are hoisted to the designed position according to the construction plan, and the structure is connected as a whole through the connections at the nodes for on-site assembly.
1. Convenient installation and disassembly, strong safety
Using a single room as the basic module, factory manufacturing replaces construction on site. The manufacturing cycle is short, installation and disassembly are convenient, and the site requirements are low. The unit structure is not easily damaged, is strong and durable, and has strong thermal insulation, windproof, snowproof, fireproof, earthquake resistance, pressure resistance and other properties.
2. System design and standard production
In the factory, digital means are used to support the standardized design, production and manufacturing of prefabricated components, ranging from the combination of frames, doors, windows and other products to the location of each switch and socket.
3. Save materials and energy, reduce costs and increase efficiency
The construction industry is a typical industry that consumes a lot of resources and energy. The energy resources itself consumes about 15%-17%, and the energy consumption during use is about 27%-28%. In comparison, prefabricated modular structures reduce energy consumption by about 20%, save 80% of water, 70% of energy, and 20% of land. They also reduce environmental pollution such as noise pollution and dust, and have a very high reuse rate.
