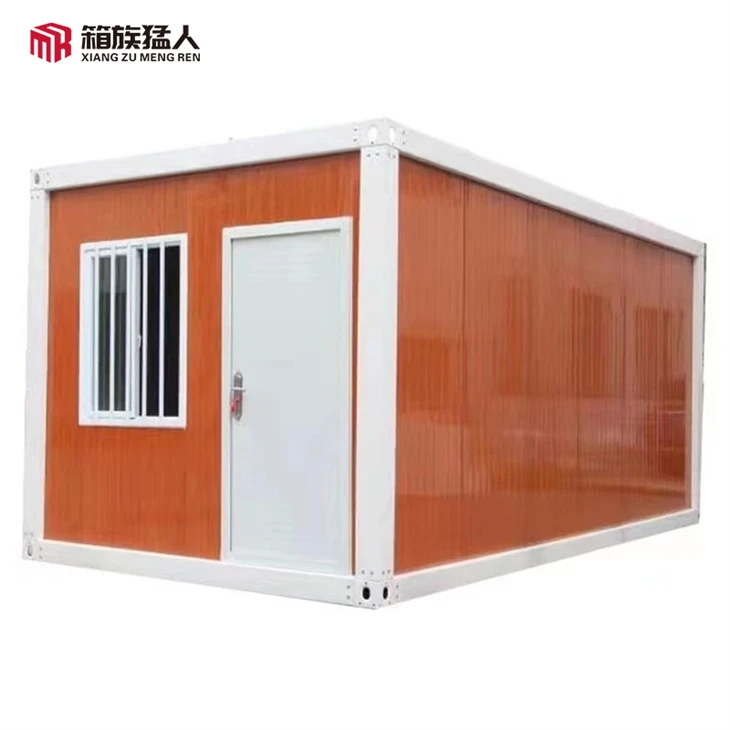

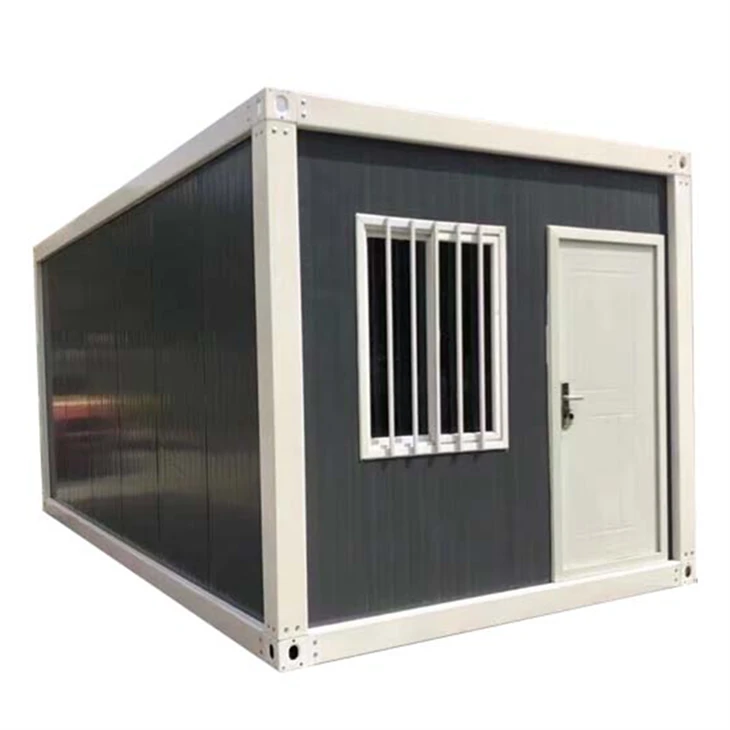

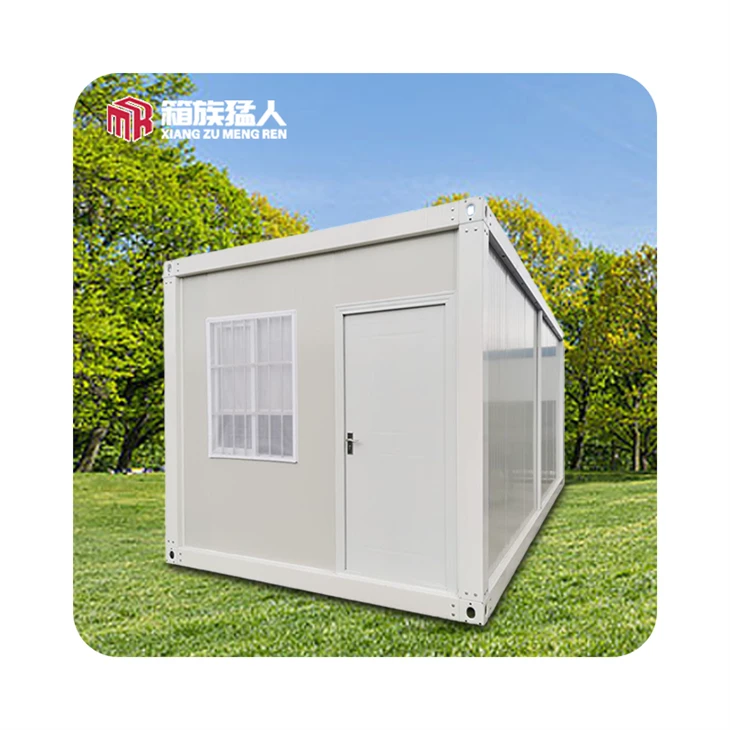

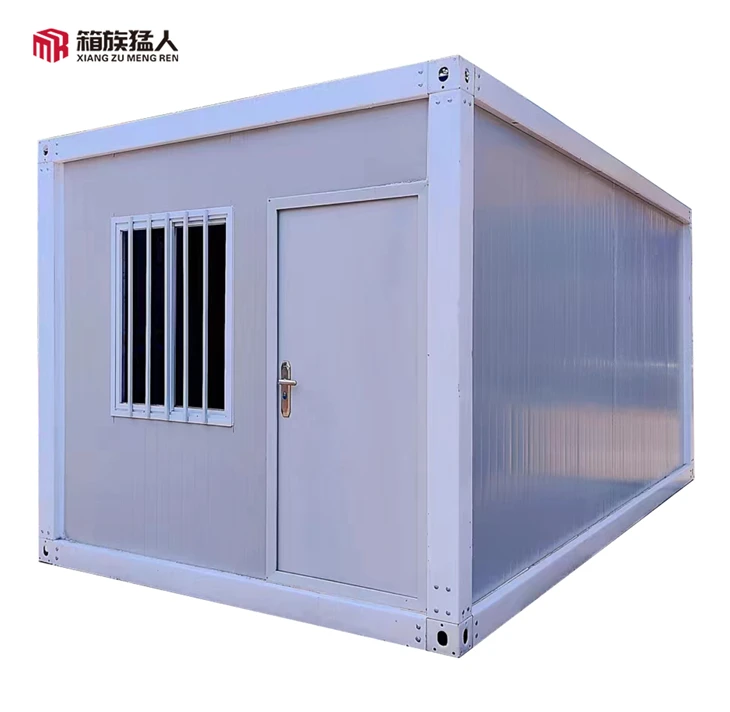

Affordable Waterproof 40ft Flat Pack Containers, Easy‑Assembly Modular Units
Weight:1500kg
Ground live load:2.0KN/㎡
Roof live load:0.5KN/㎡
Description
| Size | 5850mm*2438mm*2896mm |
| Loading | 1x40HQ can load 8 units |
| Weight | 1500kg |
| Ground live load | 2.0KN/㎡ |
| Roof live load | 0.5KN/㎡ |
| Base frame | 2 galvanized beams 5430*160*2.0mm, 2 galvanized beams 2138*160*2.0mm, galvanized 80g/㎡; 4 bottom corner pieces (high-end corner pieces, outer plate 3mm thick, cover plate 6mm thick, galvanized) |
| Top frame | 2 galvanized beams 5430*180*2.0mm, 2 galvanized beams 2138*180*2.0mm, galvanized 80g/㎡, 4 top corner pieces (high-end corner pieces, outer plate 3mm thick, cover plate 6mm thick, galvanized) |
| Column | 2526*210*150*2.0mm galvanized column, 4 pieces, galvanized 80g/㎡ |
| American /EU standard electrical distribution | depend on client |
| Steel security door | Ordinary steel anti-theft door for 50 panels, 0.4mm thick, size 840*2035, European standard fireproof lock with attached frame and door stopper |
| Window | Special plastic steel sliding window for box room 930*1130, double glass, including screen window, anti-theft window, window insertion |
| Wall panel | 950 type 50mm rock wool composite board, double-sided iron sheet 0.25mm, bulk density 80KG/m³, double-sided orange peel pattern, double-sided film coating |
Shanxi Xiangzu Mengren Building Materials Co.,Ltd, a professional Chinese manufacturer dedicated to premium modular container buildings. Our hot‑selling product, Insulated 40ft Flat Pack Containers, has gained great popularity among overseas buyers for harsh‑climate projects, temporary accommodation and onsite working spaces.
As a provincial specialized‑fine‑new enterprise and one of North China's large‑scale prefabricated‑house production bases, we own complete industrial chains for steel frames, sandwich wall panels, doors and windows. Every batch of our Insulated 40ft Flat Pack Containers is manufactured on automated production lines, strictly inspected before shipment and supported by CE, ISO9001 quality certifications and multiple technical patents.
What makes our Insulated 40ft Flat Pack Containers stand out from ordinary container units? We adopt thick rock‑wool insulation sandwich panels for walls, roof and floor. Great heat‑preservation, sound‑proof, fire‑proof and waterproof performance helps the indoor space stay cool in hot summer and warm in cold winter. All flat‑pack parts are disassembled and packed flat for low‑cost sea freight. Workers can finish quick onsite assembly within several days, no complicated construction equipment required.
We support full‑custom service for layout, window configuration, interior decoration, electric wiring and exterior color. Our insulated flat‑pack container units work well for construction site dormitory, site office, mining camp housing, villa residence, workstation, storage room and scenic spot accommodation. With an annual output up to 60000 sets, stable raw‑material supply and rich export experience to Europe, Middle‑East and Southeast‑Asia markets, we guarantee fast lead‑time and competitive factory price.
Besides high‑standard Insulated 40ft Flat Pack Containers, we supply complete installation manuals, remote assembly guidance, spare‑part supply and long‑term after‑sales service for global partners. Whether you need single‑story or multi‑layer combined modular buildings, our engineering team will tailor‑make suitable flat‑pack container solutions for your local environment.
