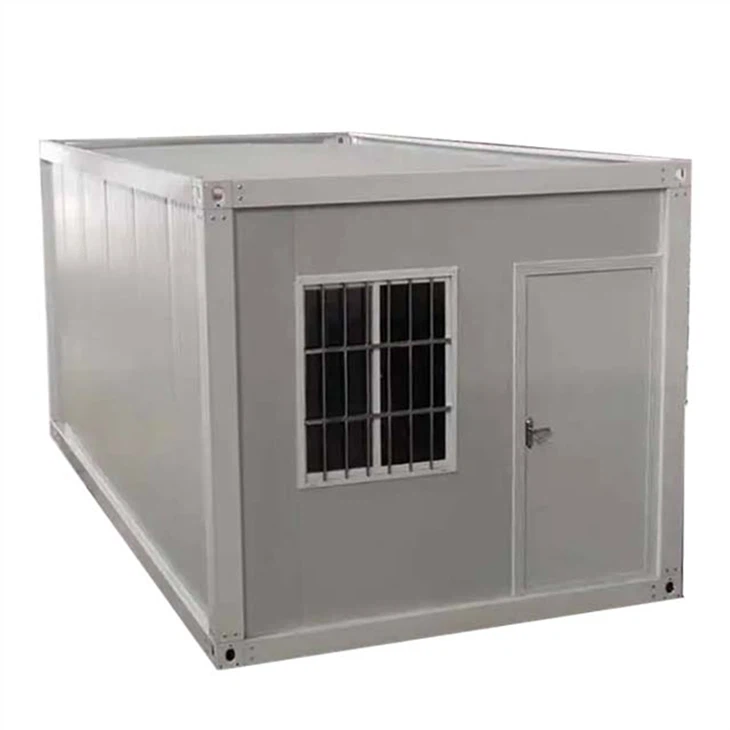

flat pack container house 40 ft

Weight:1500kg
Ground live load:2.0KN/㎡
Roof live load:0.5KN/㎡

Send Inquiry
Add To Inquiry
Description
Size 5850mm*2438mm*2896mm
Loading 1x40HQ can load 8 units
Weight 1500kg
Ground live load 2.0KN/㎡
Roof live load 0.5KN/㎡
American /EU standard electrical distribution depend on client
Steel security door Ordinary steel anti-theft door for 50 panels, 0.4mm thick, size 840*2035, European standard fireproof lock with attached frame and door stopper
Window Special plastic steel sliding window for box room 930*1130, double glass, including screen window, anti-theft window, window insertion
Wall panel 950 type 50mm rock wool composite board, double-sided iron sheet 0.25mm, bulk density 80KG/m³, double-sided orange peel pattern, double-sided film coating



1

2

4

5

6

7



Shanxi Xiangzu Mengren Building Materials Co., Ltd., the technical standard of this kind of packing box house is lower than that of container packing box house. It is characterized by convenient transportation, installation and movement, low cost, life span of more than ten years, and high return on investment. The scale of application is relatively wide. Flat pack container houses are between prefabricated houses and packing container rooms. They mainly use modular production technology to modularize a packing container room into standard parts and components, and then assemble them on site when needed, which can speed up installation and disassembly. , and can also reduce shipping costs. Packing a container house is similar to building a high-rise building. Level the surrounding and partition walls, preferably reinforced concrete, which is relatively strong; then erect pillars, connect the skeleton with transverse beams, install partitions, exterior wall panels, and door and window frames; and then lay the floor. , install another layer upward, then install the roof trusses and roof panels, and finally install doors, windows, etc., pull vertical supports, sanitary ware, small hardware and the like. In fact, this is a light steel structure, which is very similar to a heavy steel structure factory building. The packaging container house shade project refers to the construction process.

The material of the flat pack container house is relatively good, and after the packing container house is installed, during the inspection process, we will carefully check each component, such as the sealing screws, until the nails in each part are in place, and the flat pack container house materials Good toughness. We all know that the packaging container house material is relatively light and has particularly good toughness. It can deform well without any problems, because any building will deform when an earthquake occurs. Generally, buildings are made of cement concrete. , compact structure.

A container house is a house-type mobile home that looks like a container, hence the name. This kind of mobile house is available in welded fixed type and disassembly type. The welded fixed type is easy to install and disassemble, has good strength, and has good wind and earthquake resistance.
