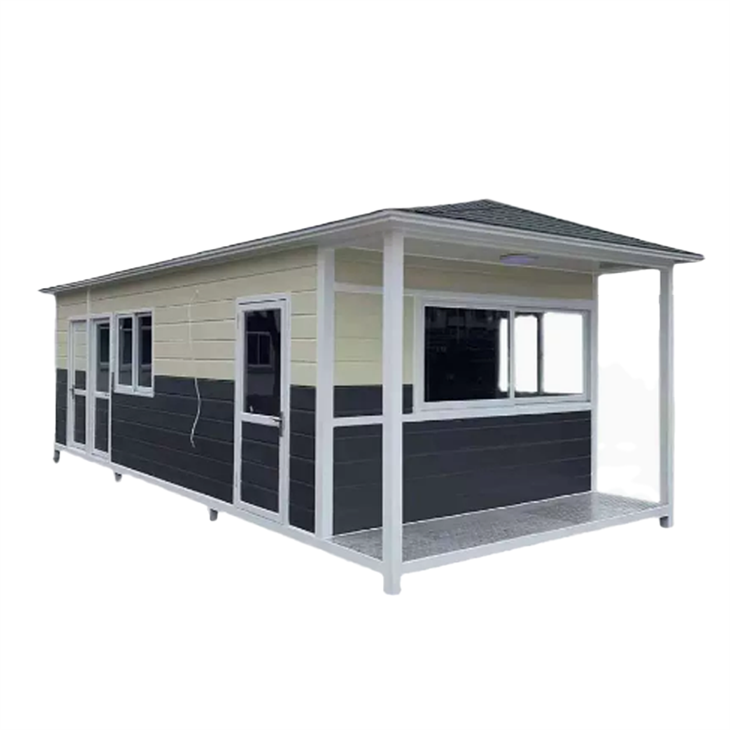

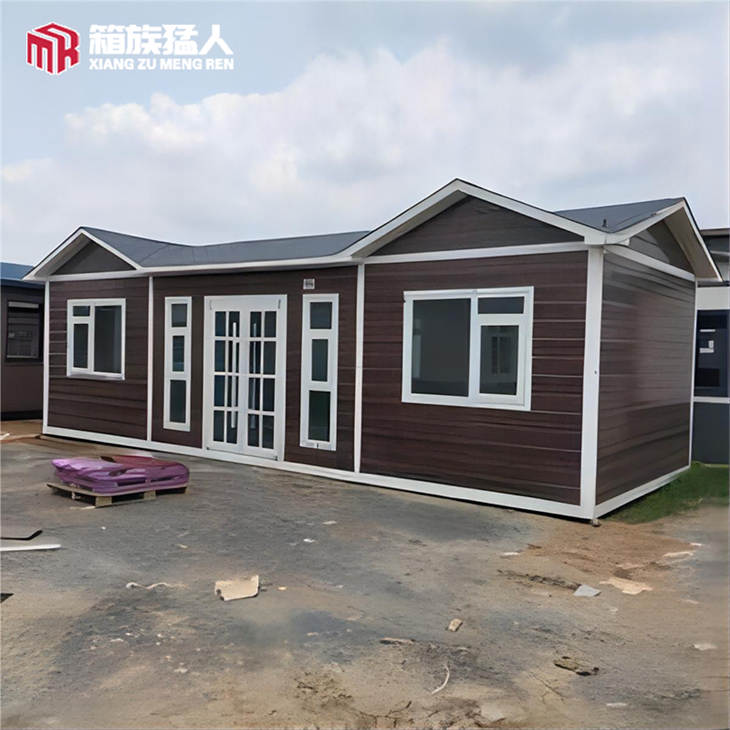

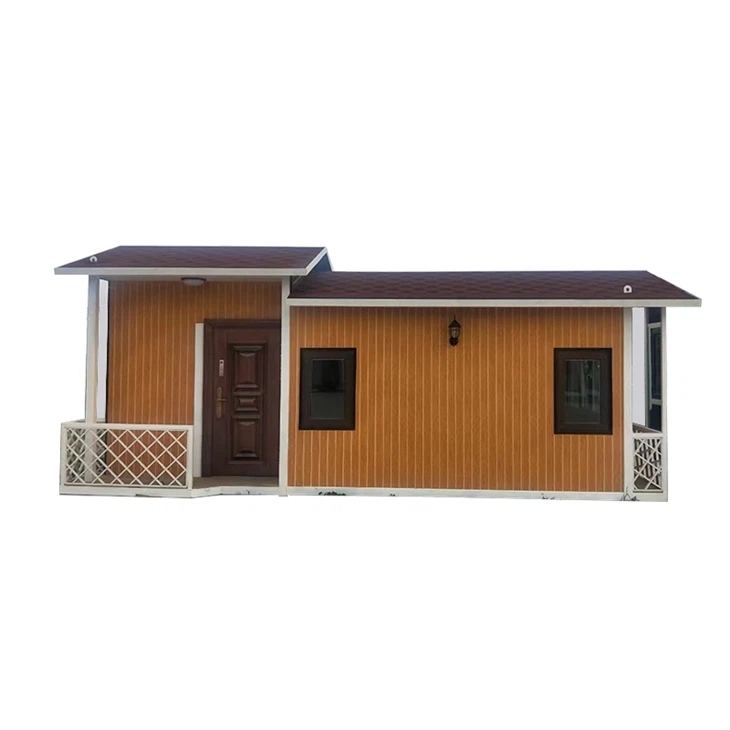

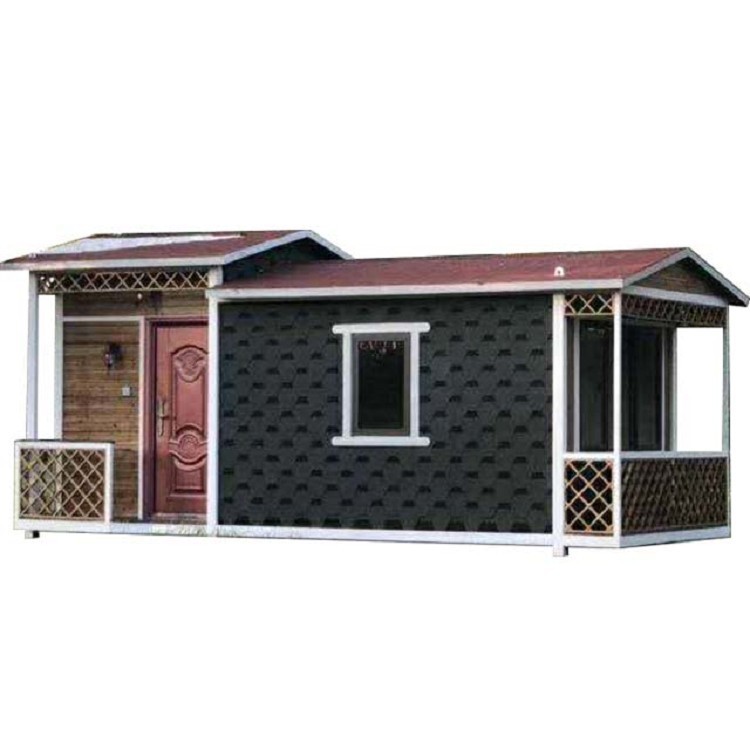

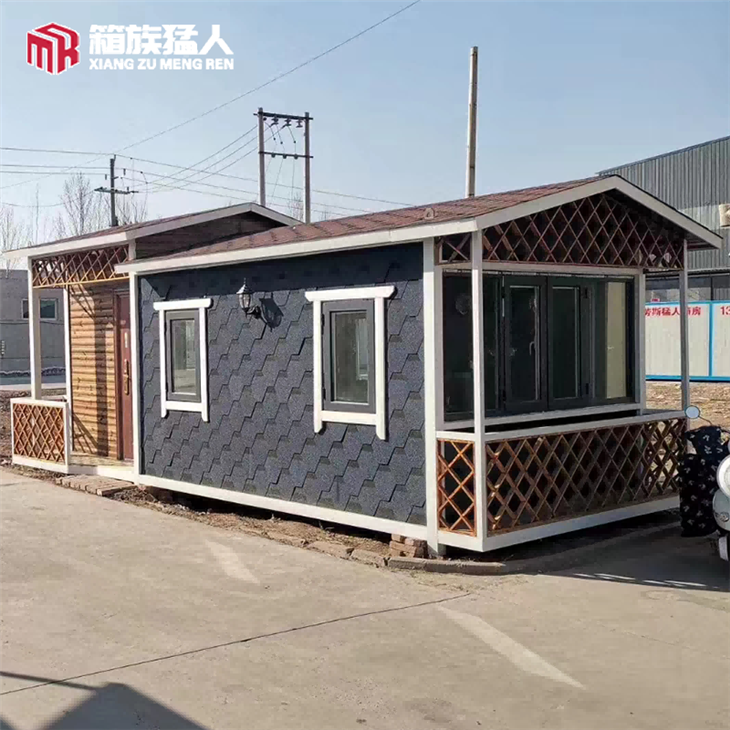

light steel structure building villa house
$1100.00 | 1 square meter(Min.Order)
Purline:Q235B C/Z section purline
Tie bar:Q235B steel pipe
Steel rod:Q235B steel round bar
Description
| Electrical | Lamp | LED circular ceiling lamp 15W/set. | |||
| Socket | Optional European standard, American standard, Austrian standard and national standard | ||||
| Switch | Single key switch × 3. | ||||
| Distribution box | Concealed electrical box × 1. | ||||
| Air switch | Optional European standard, American standard, Austrian standard and national standard | ||||
| CEE industrial plug | 220V,50Hz,3P32A×1 piece | ||||
| Wiring | Entrance line: 3*6 square meters, air conditioning socket: 3*4 square meters, ordinary socket: 3*2.5 square meters, lighting: 2*1.5 square meters. | ||||
| Temperature | suitable temperature.-50°C~+50°C | ||||
| Water proof | D-type rubber strips for each movable joint; butyl waterproof tape | ||||
| Floor load | 0.5KN/square meter | ||||
| Roof load | 1.5KN/square meter | ||||
| Wind resistance | Grade 11(wind speed≤111.5km/h) | ||||
| Integrated bathroom(Optional) | Toilet, shower room, wash basin, ventilation window, water supply and drainage pipes | ||||
| Cupboard(Optional) | L-shaped artificial marble countertop, including stainless steel sink, stainless steel hardware, and inlet and drainage pipes. |
||||
It can withstand a basic wind pressure of 0.85KN/㎡ and a wind speed of 209km/hr, which is equivalent to a typhoon intensity of level 12.
The residence adopts a high-efficiency energy-saving system. The wall keel grille is filled with fiberglass wool as insulation material, and extruded board insulation material is used on the exterior wall to avoid the "cold bridge" phenomenon of the wall.
The design and construction of light steel villas comply with the requirements of architectural design and construction standards and meet various waterproofing indicators.
In addition, because high-quality contracting companies are industrialized prefabricated structures, their joint gaps are tighter than those of traditional buildings, and they have many advantages over traditional buildings in terms of waterproofing.
The light steel villa is made of aluminum-zinc-coated light steel material, and its anti-rust performance far exceeds that of similar building structures. At the design stage, acid rain resistance and other similar issues have been considered, and all of them comply with relevant national standards.
The light steel structure keels all use the coating material specified in the national specifications - galvanized; and are strictly implemented in accordance with the specifications to ensure that the designed service life of the light steel villa reaches the number of years specified by the country.
Use one-way breathing paper around the perimeter of the entire wall to seal it against moisture. This kind of sealing can prevent outdoor moisture from entering the room, prevent harmful substances in the outdoor atmosphere from corroding metal materials, and can also eliminate indoor moisture.
Indoors, you can choose insulation cotton with aluminum foil veneer to completely isolate the entry of moist air and prevent the metal structure from being directly exposed to outdoor corrosive environments.
Since light steel villas all use dry methods, and the concrete and red brick pouring of traditional brick-concrete houses absorb a large amount of water, it is analyzed that it will take at least 40 years for all moisture in traditional brick-concrete houses to evaporate.
