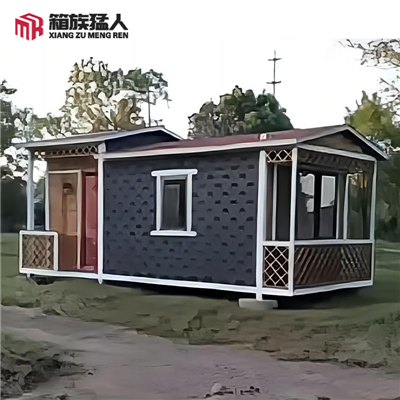

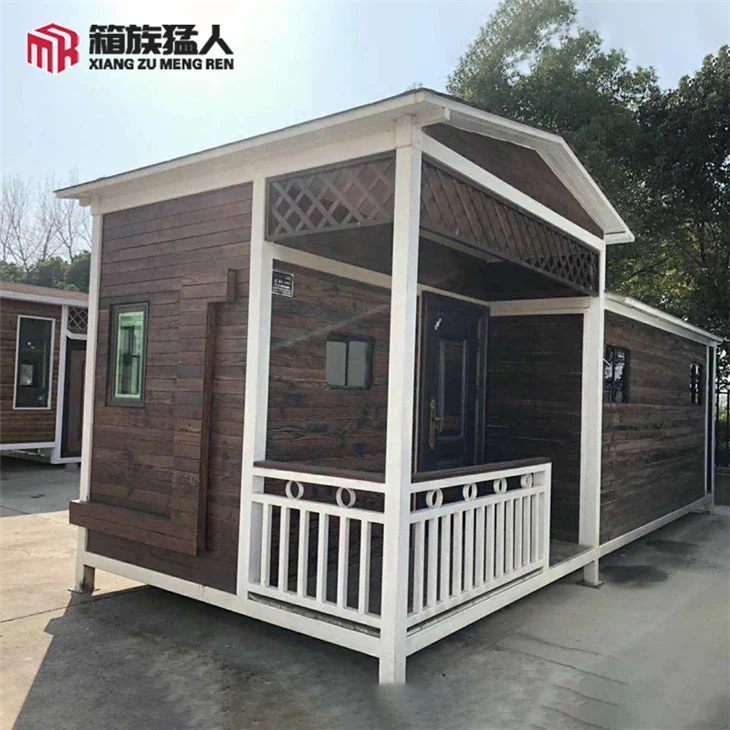

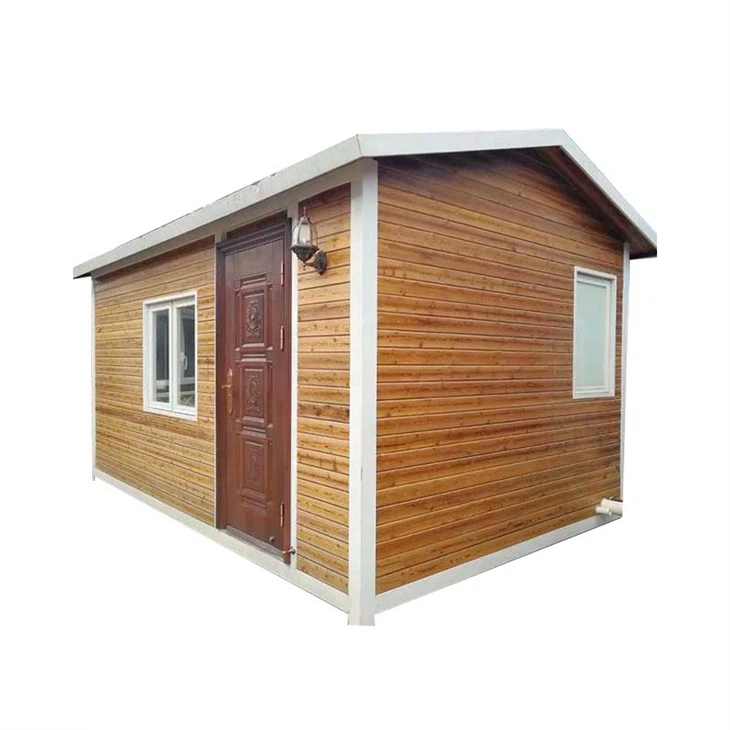

smart design modern light steel villa house
$1100.00 | 1 square meter(Min.Order)
Cold-formed thin wall steel/Q550:0.8-1.5mmthickness
Decoration Panel:Metal or PVC decoration panel
XPS panel(Grade B1):1220*600*40mm
Description
| Color | Customizable | ||||
| Material | light steel | ||||
| Door | Steel door, with handle lock and keys. | ||||
| External size:as requested | |||||
| Window | exterior window | Aluminum-magnesium alloy track sliding window, External size:as requested | |||
| Electrical | Lamp | LED circular ceiling lamp 15W/set. | |||
| Socket | Optional European standard, American standard, Austrian standard and national standard | ||||
| Switch | Single key switch × 3. | ||||
| Distribution box | Concealed electrical box × 1. | ||||
| Air switch | Optional European standard, American standard, Austrian standard and national standard | ||||
| CEE industrial plug | 220V,50Hz,3P32A×1 piece | ||||
| Wiring | Entrance line: 3*6 square meters, air conditioning socket: 3*4 square meters, ordinary socket: 3*2.5 square meters, lighting: 2*1.5 square meters. | ||||
The floor system is mainly truss type, with light steel beams with a height of 305mm and assembled from standard small rods. 18mm thick OSB structural panels are laid on the floor beams, and a 40mm thick lightweight concrete cushion (crack-resistant sound insulation layer) is placed on top. Wooden floors, ceramic tiles or carpets can be used as the floor decoration layer. The floor is made of a combination of high-strength hot-dip galvanized C-shaped and U-shaped light steel components. The floor beams are arranged with dense ribs at equal intervals according to standard modules. The floor beams are covered with structural plates that have undergone strict moisture-proof and anti-corrosion treatment to form a solid structure. Earthquake-resistant floor systems.
Key points: earthquake resistance, sound insulation, tight joints on the floor, and prevention of leakage.
roof system
Roof trusses are assembled from various light steel components, generally including triangular roof trusses and T-shaped roof trusses. Various complex roof shapes can be easily and flexibly realized. Generally, colorful asphalt tiles are used on roofs, which have excellent waterproof functions and highlight their beauty and quality. Light steel composite roof trusses filled with 2*100mm glass fiber wool and 9mm OSB structural panels (in some areas with heavy wind and snow loads, 12mm OSB structural panels are used instead), and the structural panels are painted with waterproofing. Asphalt tiles are used as roof tiles. The castle can be made of glazed tiles and Spanish clay tiles.
Key points: The roof is beautiful and elegant, has strong bearing capacity and can withstand snow loads of more than 1.55KN/㎡.
