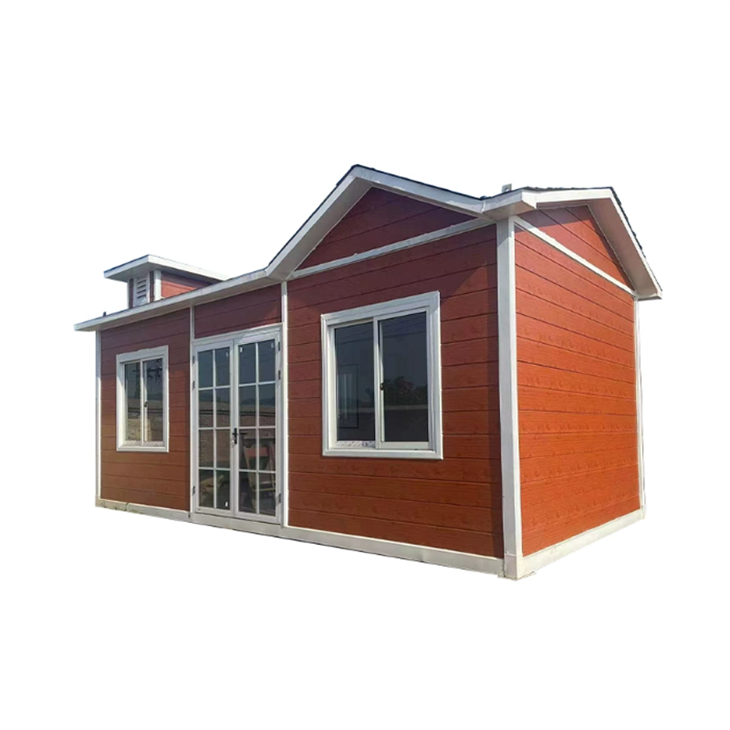

light steel frame villa
$1200.00 | 1 square meter(Min.Order)
Roof Tile:Asphalt tile/Resin tile+SBS+OSB+Glass Wool
Wall,roof,floor and ceiling:90/100mmglass wool,XPS Panel
Entry door:Steel security door,can be customized
Description
| Temperature | suitable temperature.-50°C~+50°C | ||||
| Water proof | D-type rubber strips for each movable joint; butyl waterproof tape | ||||
| Floor load | 0.5KN/square meter | ||||
| Roof load | 1.5KN/square meter | ||||
| Wind resistance | Grade 11(wind speed≤111.5km/h) | ||||
| Integrated bathroom(Optional) | Toilet, shower room, wash basin, ventilation window, water supply and drainage pipes | ||||
| Cupboard(Optional) | L-shaped artificial marble countertop, including stainless steel sink, stainless steel hardware, and inlet and drainage pipes. |
||||
Light steel villa residences are non-traditional residences, and the quality and safety of the house have nothing to do with the thickness of the wall.
Its main material is a light steel structure synthesized by hot-dip galvanizing and cold-rolling technology. After accurate calculation and the support and combination of auxiliary parts, it has a reasonable bearing capacity. In addition, steel structure buildings have been around for hundreds of years, and steel structure homes appeared in the United States in 1900. The norms were established in 1976 and are still in use today. Therefore, the development of light steel structure villas has been quite mature so far, but it has only been introduced into the country for a short time, resulting in insufficient understanding by everyone.
Compared with traditional buildings, the usable area of light steel villas is nearly 18% higher than that of traditional buildings. They are also quick to install, come in a variety of styles, have recyclable waste materials, have small errors in factory prefabricated main components, and have low overall costs.
Light steel villas have an overall supporting construction system for moisture-proofing and waterproofing, generally covering the following aspects:
Foundation: lay thick moisture-proof membrane;
Ground: Brush with double layers of waterproof asphalt, add black waterproof membrane to the position where the light steel structure is placed for waterproofing;
Wall: It is equipped with moisture-proof breathing paper (waterproof and breathable) to ensure excellent waterproofing of the wall and has the ability to adjust indoor relative humidity. The eaves protrude 300mm to 600mm to directly divert water, and there are special water supply and drainage pipes.
Roof: The entire surface is made of waterproof membrane, and the cornices are specially waterproofed. Glass fiber wool is placed inside the roof to maintain heat insulation. Asphalt tiles are currently the most waterproof tiles in the world. Water falls directly along the asphalt tiles into water droplets. It can achieve 360-degree moisture-proof and waterproof treatment.
However, traditional buildings do not have overall moisture-proof measures and have poor air permeability.
